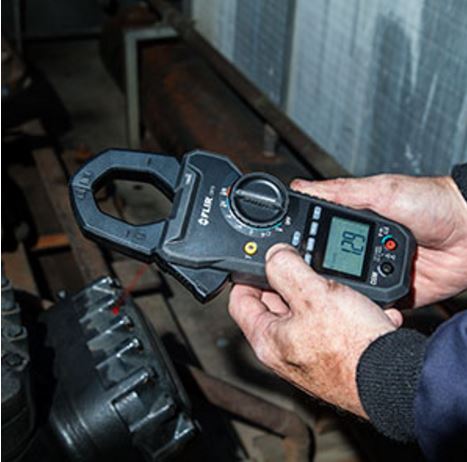

About the FLIR CM78 Industrial CAT IV 1000A Clampmeter with IR Thermometer
Designed to be rugged, the FLIR CM78 clamp meter delivers safety and versatility—without sacrificing high performance or innovation for tomorrow’s challenges.
Take the CM78 on every job and it delivers with advanced meter functions including True RMS accuracy, AC/DC current and voltage measurement, resistance, capacitance, frequency, infrared and contact thermocouple temperature, diode-test, and continuity check. The 4-digit, 4,000 count display is LED-illuminated making it bright and easy to read anywhere. Several one-button functions including data hold, min/max, and selectable auto- or manual-ranging. A relative function helps you “zero out” the meter.
The large 1.7 inch (42mm) jaw opening handles conductors up to 1500 MCM.
For quick, point and shoot temperature readings, you can also use the non-contact IR thermometer with laser pointer for fast temperature checks or hot-spot detection. The FLIR CM78 amp clamp has a CAT IV-600V, CAT III-1000V overvoltage safety rating.
A Brighter Idea
The FLIR CM78 continues to deliver on the value of added safety with a super-bright dual-LED worklight that illuminates dark or poorly-lit work areas without the use of a separate flashlight. This built-in light not only frees up one hand, it adds confidence when performing visual inspections (for wear, pitting, dirt, corrosion and dust) and makes it easier to read faded labels and other markings.
And for peace of mind for years to come, FLIR backs up its durable clamp meters with a limited lifetime warranty.
The CM78 at a Glance:
- Bluetooth connectivity to FLIR’s Android app & thermal imagers
- 1000A AC/DC Clamp
- True RMS, Autoranging
- Built-in spot IR thermometer
- Thermocouple temperature
- Peak, Hold, Max./Min., Relative data functions
- 42mm jaw opening
- Silicon test leads
- Limited Lifetime Warranty
FLIR CM78 Specifications
|TECHNICAL SUMMARY||MAX RANGE||BASIC ACCURACY|
|Temperature (IR)||-20 to 270°C||±2%|
|IR Distance to Target Ratio||8 inches away : 1 inch spot size|
|Type K Temperature
|-20 to 760°C||±3%|
|Bluetooth Range Max||10m|
|Jaw Opening||42mm, 2000MCM|
|Category Rating||CAT IV-600V, CAT III-1000V|
