FLIR E86 Advanced Thermal Imaging Camera 464 × 348
$18,000.00 • ( $19,800.00 inc. GST )
The FLIR E86 replaces the FLIR E85 with
substantial increase in resolution!
The FLIR E86 is packed with the high-performance features needed for fast, accurate detection of hot spots and hidden deficiencies.

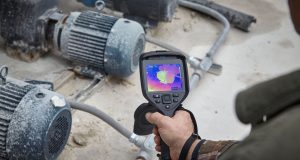

This 464 × 348 pixel thermal camera has an expanded temperature measurement range for easier detection of hot spots and hidden anomalies on electrical and mechanical assets.
Interchangeable AutoCal™ lenses offer complete coverage of near and distant targets, while FLIR imaging technology such as UltraMax® and MSX® ensure crisp, vibrant thermal images.
FLIR Exx series Datasheet
FLIR E86 Advanced Thermal Imaging Camera features onboard FLIR Inspection Route feature runs pre-planned survey routes to help inspectors stay organized when surveying large or multiple locations. For a limited time, the purchase of an E86 camera includes a 3-month subscription to FLIR Thermal Studio Pro and FLIR Route Creator.
FLIR E86 Features
LASER DISTANCE MEASUREMENT
The laser distance meter aids in quick, precise autofocusing and provides data for on-screen area measurement (m² or ft²).
INTELLIGENT AUTOCAL™ OPTICS
The FLIR E86 Advanced Thermal Camera provides complete coverage of near and far targets through a range of interchangeable AutoCal™ lenses, with fields of view for everything from wide-angle roof inspections to electrical inspections, all performed from a safe distance.
It comes with one of the following lenses (please specify) which is applicable to your application. Extra lenses can be purchased separately to increase the versatility of your camera

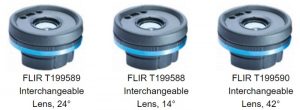

What lens do you need?
14°, 29 mm lens: this telephoto lens has a narrow field of view for precise focus and crisp imaging of distant targets.
24°, 17 mm lens: often considered the “standard” lens, the 24° x 18° field of view allows users to remain a safe distance from energized equipment (e.g 3 m/6.6 ft) while still obtaining a crisp focus on smaller targets.

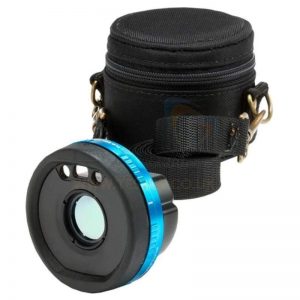

42°, 10 mm lens: this wide-angle lens captures the largest field of view for imaging buildings, roofs, or other areas where it’s important to gather the most information in a single image.
STREAMLINED REPORTING
Onboard integration with FLIR routing software*, a built-in mic for voice annotation, and report generation features all help the E86 streamline your workday.
Exx-Series cameras come equipped with FLIR Inspection Route. This camera mode guides users along a defined route across multiple locations and organizes images and data connected with each inspected asset. Users create a route in FLIR Thermal Studio Pro* with the Route Creator* plugin, then download it to the camera to streamline inspections and speed up post-processing and reporting. (*optional accessory software)
- For a limited time, the purchase of an E86 camera includes a 3-month subscription to FLIR Thermal Studio Pro and FLIR Route Creator.
FLIR E86 Specification
| Resolution | 464 × 348 pixels |
| Resolution with UltraMax® enhancement | 645,888 pixels |
| MSX® image enhancement | Yes: details from visual camera add depth and perspective |
| Built-in visual camera | 5 MP, fixed focus, with built-in LED light |
| Thermal sensitivity | <30 mK @ 30°C, 42° lens |
| Temperature range | -20°C to 120°C |
| 0°C to 650°C | |
| 300°C to 1500°C | |
| Optional temperature range | – |
| Accuracy | ±2°C or ±2% of the reading |
| Focus modes | Continuous LDM, one-shot LDM, one-shot contrast, manual |
| Digital zoom | 1-4x continuous |
| Measurement tools | 3 spot meters in live mode, 3 area meters in live mode |
| Measurement presets | None, center spot, hot spot, cold spot, User Presets 1&2 |
| Available lenses | 14°, 24°, 42°, macro (2 x) |
| Lens identification | Automatic (FLIR AutoCal |
| 1-Touch Level/Span | Yes: automatic contrast enhancement |
| Laser pointer | Yes |
| Laser distance meter | Yes |
| Area measurement information | Yes |
| On-camera routing software | FLIR Inspection Route – enabled |
| On-camera report building | Voice annotation and GPS tagging to images and video; on-screen text; sketch on infrared images from touchscreen |
| FLIR software integration | FLIR Thermal Studio Starter, FLIR Thermal Studio, FLIR Thermal Studio Pro, FLIR Research Studio |
| Radiometric JPEG | Yes |
| IR, radiometric, visual video recording | Yes |
| IR, radiometric, visual video streaming | Yes, over UVC (radiometric, non-radiometric, visual) and Wi-Fi (non-radiometric, visual) |
| Communication modes | USB 2.0, Bluetooth®, Wi-Fi, DisplayPort |
| METERLiNK | Yes |
| Display | 64 0 × 4 80 pixels (VGA) Dragontrail® touchscreen |
| Drop-testing | 3 metre |
| Weight | 2 kg |
|---|
